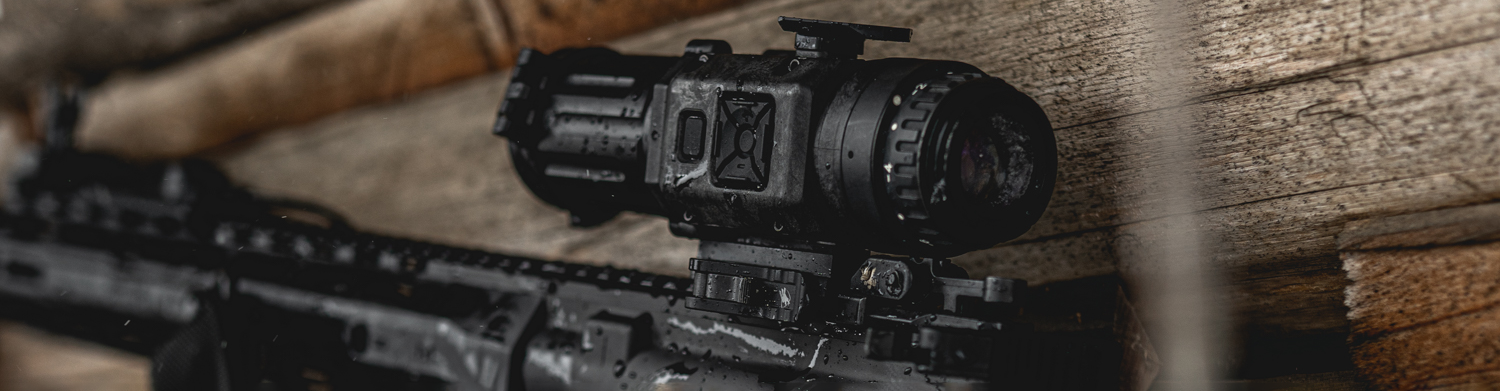

GT-14B Night Vision Monocular

GT-14B Night Vision Monocular

Generation 3 Auto-Gated Image Intensifier, Bravo
Thin Filmed, Green Phosphor

$2,615

Add to Cart

Description Accessories Specifications Similar products Downloads

The GT-14 is a high-performance night vision monocular with advanced ergonomics and intelligent power control developed as an alternative to the standard PVS-14. Submersible and lightweight, GT-14 is equipped with the most advanced, U.S. made Generation 3 image intensifier tubes.

N-Vision Optics’ GT-14 can be used hand-held, head or helmet mounted, weapon mounted, or even dual mounted for use in a binocular configuration. All GT-14 units are equipped with automatic brightness control (ABC) and in-ocular IR and Low Battery indicators.

Each unit ships with: GT-14 adapter (j-arm), sacrificial window, eyecup, lens cap, neckcord, soft carry case, lens cleaning paper, battery, user manual.

Features

Submersible and shockproof
Automatic brightness control (ABC)
Invisible to the human eye IR
Hand-held, helmet-mountable, weapon-mountable
In ocular IR-on and low battery indicators

Eye Cup

5x Magnifier Lens

Dual Mount for G14

Helmet Mount Assembly

GT-14 Weapon Mount

3x Magnifier Lens

Purge Kit, Night Vision

Magnification	1x
Range Focus	25 cm to infinity
Diopter Focus	-6 to +2
Field of View	40˚
Operating Temperature	-51˚ C to +49˚C
Storage Temperature	-51˚ C to +85˚C
Weight	320 g / 11 oz
Battery	1 CR123 or 1 AA
Image Intensifier	Generation 3 Bravo Auto-Gated Image Intensifier
Resolution	57 lp/mm (min)
Signal to Noise	21 (minimum)
Dark Spots
Size	Zone 1	Zone 2	Zone 3
>.009-.012	0	1	1
>.006-.009	0	1	2
>.003-.006	1	2	3
